Copper wire design
Continuous duty
B class insulation
Thermally protected
Locked rotor protection, open phase protection, over-voltage protection
Application
Fan Coil Unit
VRF Indoor unit and CRAC
Performance
AC 120/208-277V
60/50Hz
2 or 3-speed output

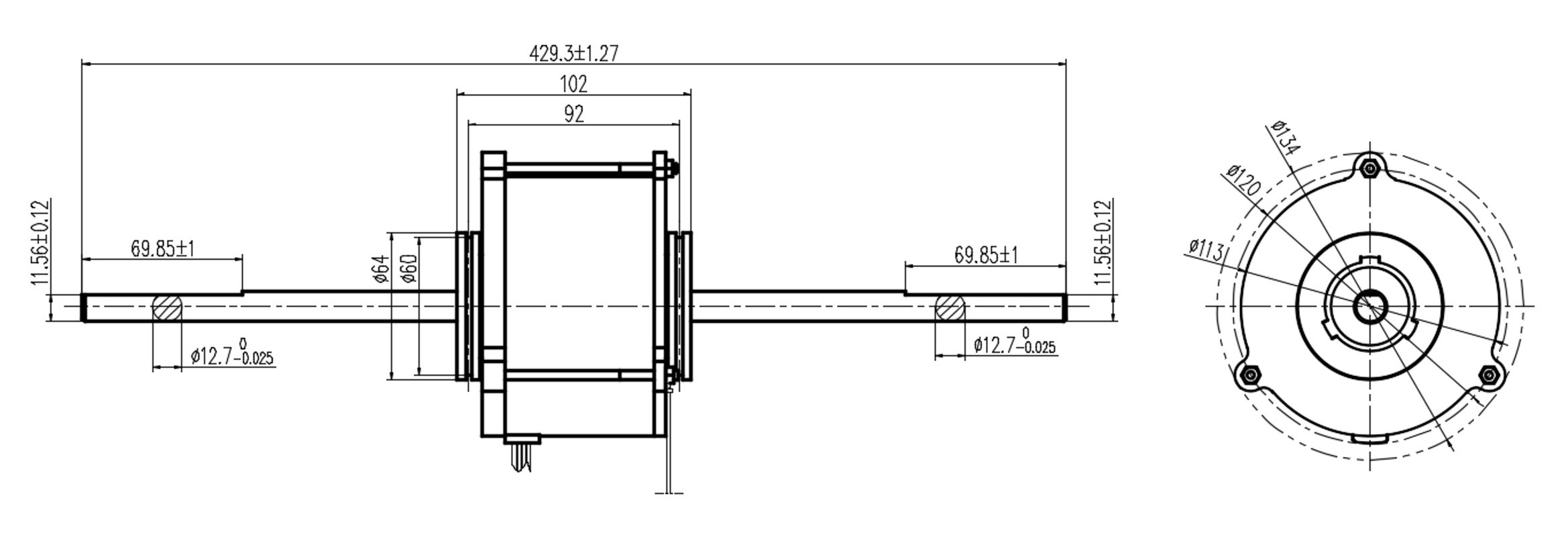

Mechanical Parameter
Note:The specific size can be adjusted as per customer's machine assembly.
Technical Specifications
Model | Vol (V) | Freq (Hz) | AMPS (A) | RPM (r/min) | Output (W) |
ZWD007510SEB001 | VAC120/208-240/277 | 60 | 0.8-1.6/0.4-0.8 | 350-1630 | 75 |
ZWS007510SEB001 | VAC120/208-240/277 | 60 | 0.8-1.6/0.4-0.8 | 350-1630 | 75 |
Note:The above are representative specifications, can be designed according to user requirements.According to user requirements: VDC:160V,280-380V、VAC:100-120V/208-240V,IP00-IP54、8/10P, E/B/F/H class insulation products.
